Type 05 2 Way Active Studio Monitor Black

TYPE 05 MK2

€799.00 EUR

TYPE 05 MK2

€799.00 inc. tax

No-Compromise Compact Monitor with on-board Lineariser® and CoP


Available to buy direct or from selected retailers

You've selected this product

TYPE 05 MK2

€799.00 inc. tax

Order from an approved retailer

Price may vary.

Contact our team if you have a question about this product, or need advice on the best setup for your space.

"Given HEDD’s heritage, it’s no surprise that I found the Type 05 MK2 monitors so satisfying for desktop audio."

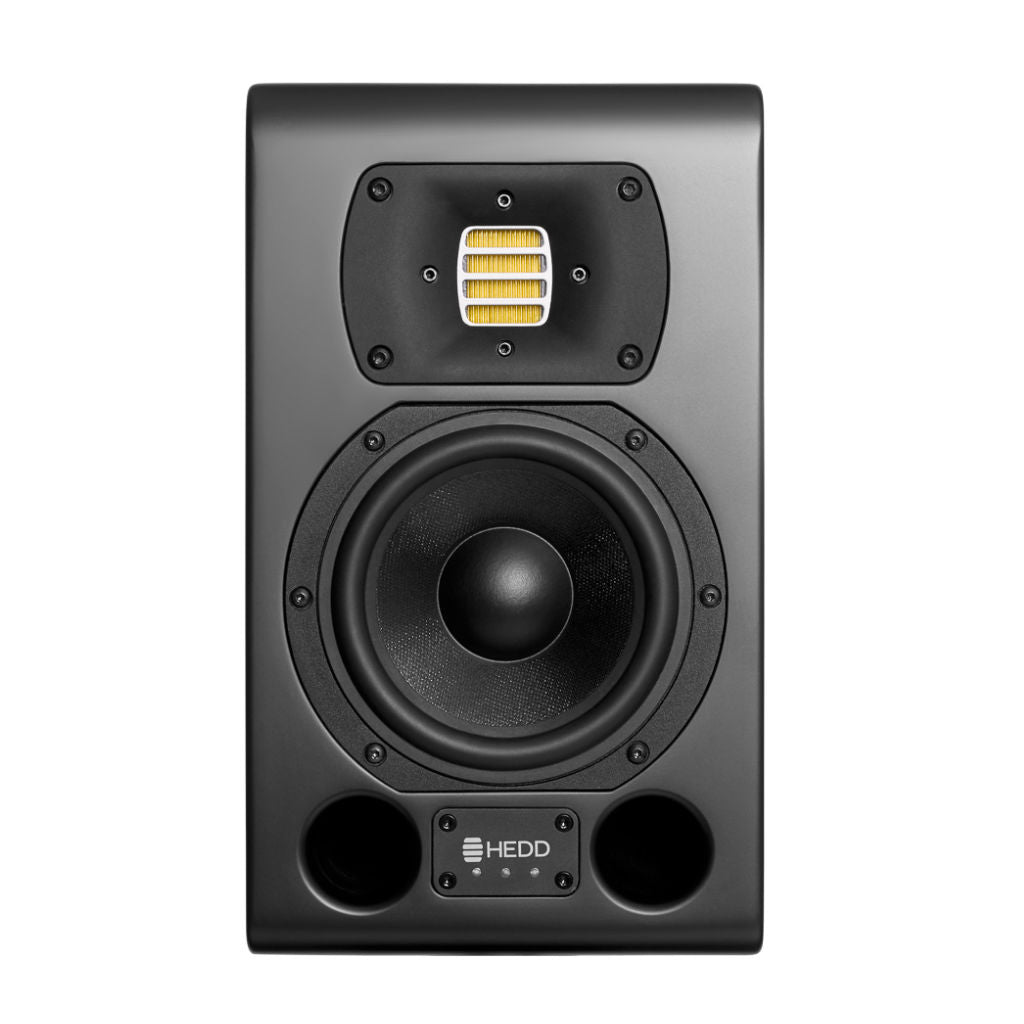

HEDD Air Motion Transformer

Our AMT was designed to deliver impeccable transient response and ultra-high frequency extension. This unique driver is handmade in Berlin to ensure the highest quality possible.

Our design of the Air Motion Transformer is known for transparent and linear high frequencies that do not distort the natural sound reproduction in any way.

HEDD Lineariser®

Our HEDD Lineariser® is fully integrated into the HEDD Type 05 MK2 monitors. With the phase linearity enabled we can solve time-related delays with a non-perceivable short reaction of 10ms. Effectively, this improves transients and imaging precision. For the first time, the phase correction can be synched with our HEDD BASS subwoofer range to compensate for group delay in a sat-sub system. Of course, the HEDD Lineariser® is optional and can be disengaged.

CoP: Closed or Ported

Like most monitors, the Type 05 MK2 speakers are based on a Ported base system that allows for a voluminous bass response with impressive extension. However, the same speakers can transform into a functionally new design with the flip of a switch and the use of the included plugs. The newly introduced Closed operation mode benefits from the extensive research that went into our reference monitoring system, the HEDD Tower Mains. With sealed bass ports, the Type 05 MK2 exceed expectations of bass precision and offers a new level of texture details and low-end harmonics.

  • Media Total Media Total
  • Pa Salieu Pa Salieu
  • Fresh Phylix Fresh Phylix
  • Phable Phable

Specifications

Main Features

HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters

DSP Integration

Custom high-resolution 96 kHz / 32 Bit AD / DA converter

Drivers

2-Way: 5" Woofer (1,5" voice coil) + HEDD AMT Tweeter

Power

2x100 W ICEpower amplification (85-264 V)

Crossover

2.500 Hz

Frequency Range

45 Hz - 40 kHz (LFE: 38 Hz - 40 kHz)

Maximum SPL

112 dB SPL (sound pressure level) per pair at 1m

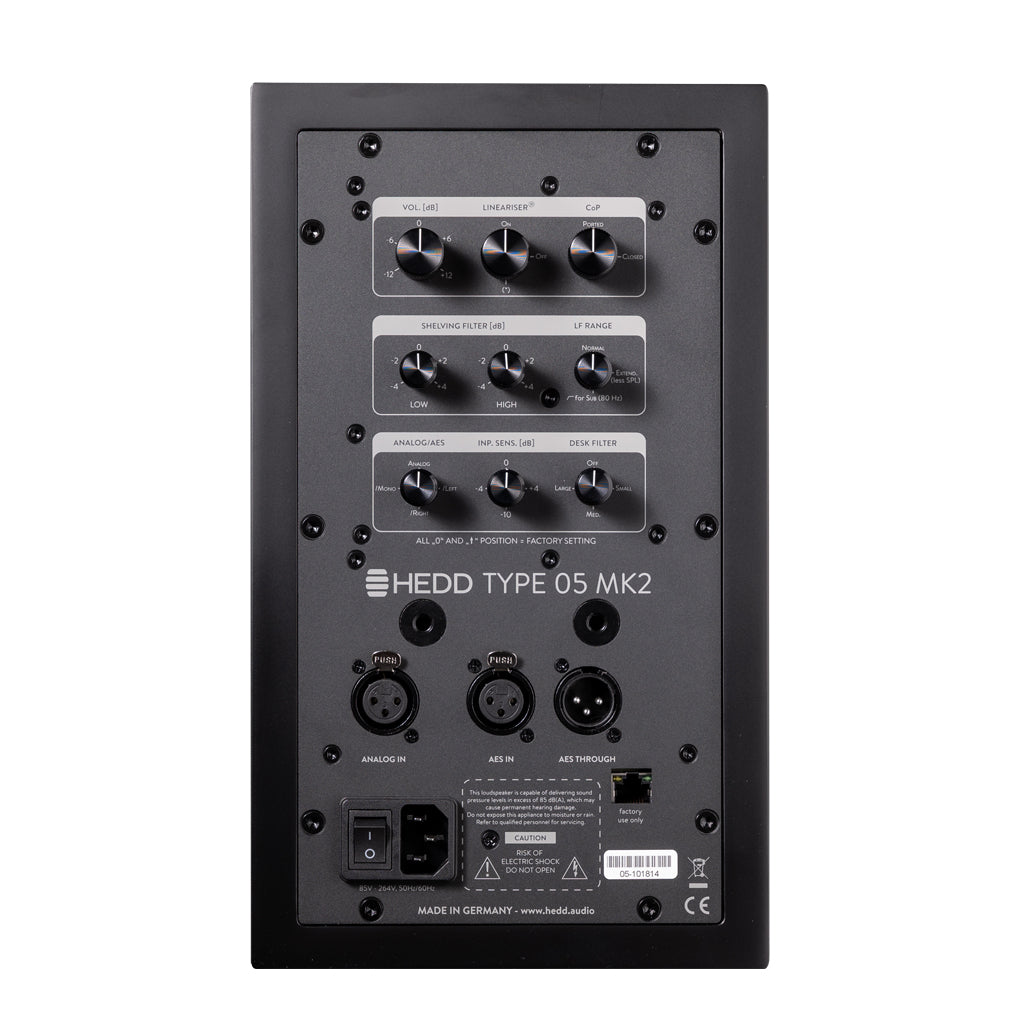

Inputs

Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)

Output

Digital AES pass-through via XLR

Dimensions and Weight

308 x 180 x 245 mm, 6.4 kg per unit

Downloads

Quickstart Download
Manual Download
XLR Setup Guide Download
AES Setup Guide Download
Firmware Update Download
