Studio Monitor Subwoofer


€2,999.00 EUR


€2,999.00 inc. tax

BASS 12 - 12" Subwoofer with DSP and 700W ICE Power amplification

Available to buy direct or from selected retailers

You've selected this product


€2,999.00 inc. tax

Order from an approved retailer

Price may vary.

Contact our team if you have a question about this product, or need advice on the best setup for your space.

HEDD Lineariser®

By bringing our renown HEDD Lineariser® technology to the world of subwoofers, we are enabling you to use a fully phase-linear subwoofer-satellite system.

Closed or Ported

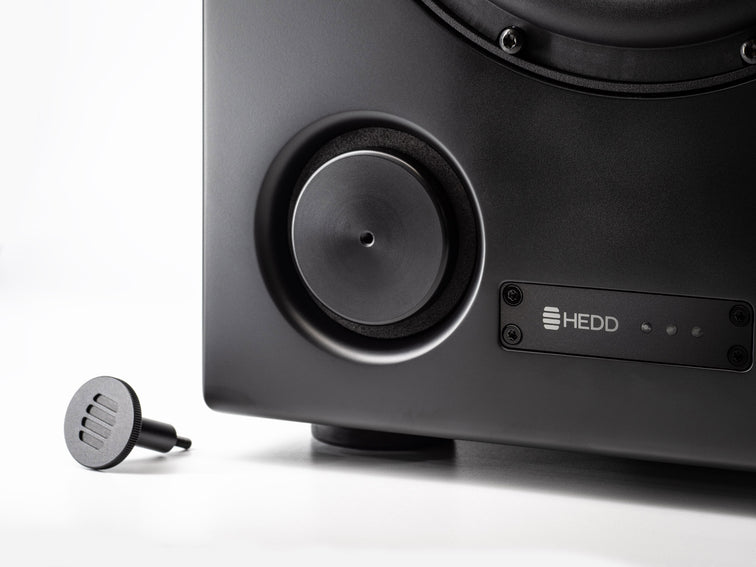

HEDD subwoofers make use of large bass ports that enable them to create the powerful dynamic sound you would expect from an active subwoofer. However, by pushing a set of custom plugs into the ports (plus switching to another DSP setting), you can turn them into a completely different beast, increasing precision and control.

Group Delay Compensation

The Lineariser® technology is a crucial part of our BASS subwoofers. It allows for phase correction which can by addressed on both the subwoofer and monitor level. In addition to that, we solved group delay problems by developing our GDC tool. The result is jaw dropping accuracy for a subwoofer an overall integrated sound experience.


Main Features

HEDD Lineariser®, CoP, GDC, LFE, var. phase and crossover

DSP Integration

Custom high-resolution 96 kHz / 32 Bit AD / DA converter


12" Woofer (2,5" voice coil)


700 W ICEpower amplification (85-264 V)

Frequency Range

20 Hz - 200 Hz (LFE: 16 Hz - 200 Hz)

Maximum SPL

115 dB SPL (sound pressure level) per unit at 1m


Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)


Filtered Analog (XLR / 22 kΩ) and Digital AES pass-through

Dimensions and Weight

595 x 380 x 610 mm, 32.1 kg


Quickstart Download
Manual Download
XLR Setup Guide Download
AES Setup Guide Download
Firmware Update Download

Try a smaller size
