TYPE 20 MK2

TYPE 20 MK2

€2,199.00 EUR

TYPE 20 MK2

€2,199.00 inc. tax

Iconic Compact 3-Way Monitor with on-board Lineariser® and CoP


Available to buy direct or from selected retailers

You've selected this product

TYPE 20 MK2

€2,199.00 inc. tax

Order from an approved retailer

Price may vary.

Contact our team if you have a question about this product, or need advice on the best setup for your space.

"From the music creators standpoint, the Type 20 MK2 is a reliable and comfortable benchmark whether that's engineering, producing, or tracking."

HEDD Air Motion Transformer

Our AMT was designed to deliver impeccable transient response and ultra-high frequency extension. This unique driver is handmade in Berlin to ensure the highest quality possible.

Our design of the Air Motion Transformer is known for transparent and linear high frequencies that do not distort the natural sound reproduction in any way.

HEDD Lineariser®

Our HEDD Lineariser® is fully integrated into the HEDD Type 20 MK2 monitors. With the phase linearity enabled we can solve time-related delays with a non-perceivable short reaction of 10ms. Effectively, this improves transients and imaging precision. For the first time, the phase correction can be synched with our HEDD BASS subwoofer range to compensate for group delay in a sat-sub system. Of course, the HEDD Lineariser® is optional and can be disengaged.

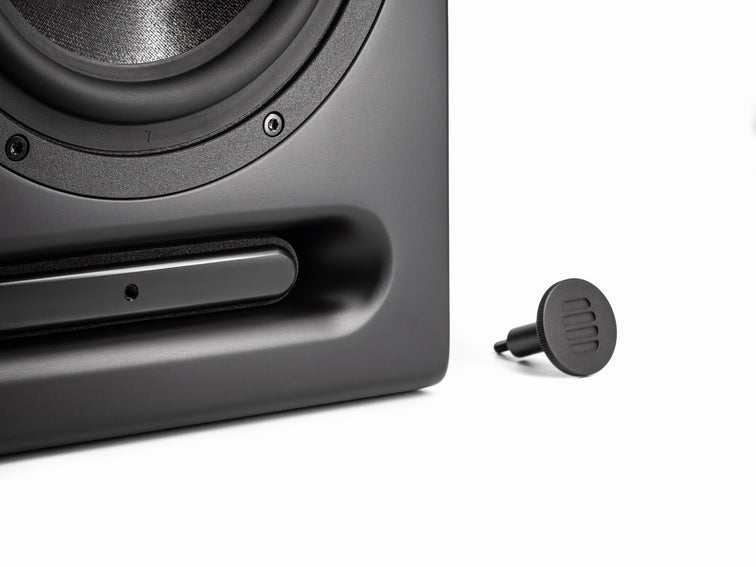

CoP: Closed or Ported

Like most monitors, the Type 20 MK2 speakers are based on a Ported base system that allows for a voluminous bass response with impressive extension. However, the same speakers can transform into a functionally new design with the flip of a switch and the use of the included plugs. The newly introduced Closed operation mode benefits from the extensive research that went into our reference monitoring system, the HEDD Tower Mains. With sealed bass ports, the Type 20 MK2 exceed expectations of bass precision and offers a new level of texture details and low-end harmonics.

  • TOKiMONSTA TOKiMONSTA
  • Hildur Guðnadóttir Hildur Guðnadóttir
  • Soundfabrik Berlin Soundfabrik Berlin
  • Max Schlundt Kulturtechnik Max Schlundt Kulturtechnik
  • KATO KATO
  • Illmind Illmind
  • TeeBee TeeBee

Specifications

Main Features

HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters

DSP Integration

Custom high-resolution 96 kHz / 32 Bit AD / DA converter

Drivers

3-Way: Proprietary 7'' and 4'' Honeycomb Woofers, HEDD AMT Tweeter

Power

3x300 W ICEpower amplification (85-264 V)

Crossovers

250 Hz / 3.200 Hz

Frequency Range

32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)

Maximum SPL

120 dB SPL (sound pressure level) per pair at 1m

Inputs

Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)

Output

Digital AES pass-through via XLR

Dimensions and Weight

280 x 358 x 338 mm, 15.4 kg per unit

Downloads

Quickstart Download
Manual Download
XLR Setup Guide Download
AES Setup Guide Download
Firmware Update Download

You might also be interested in

A beautiful set of speakers to mix, work long hours on with little fatigue and maintain excellent translation to other listening environments. Compact in size, yet packing some real punch across the spectrum, they feel like a speaker much bigger than they actually are… a pleasure to listen to.

Duncan Brown, Grammy Nominated Mixer, Recording Engineer, and Producer
